Compact brewing systems for beginners

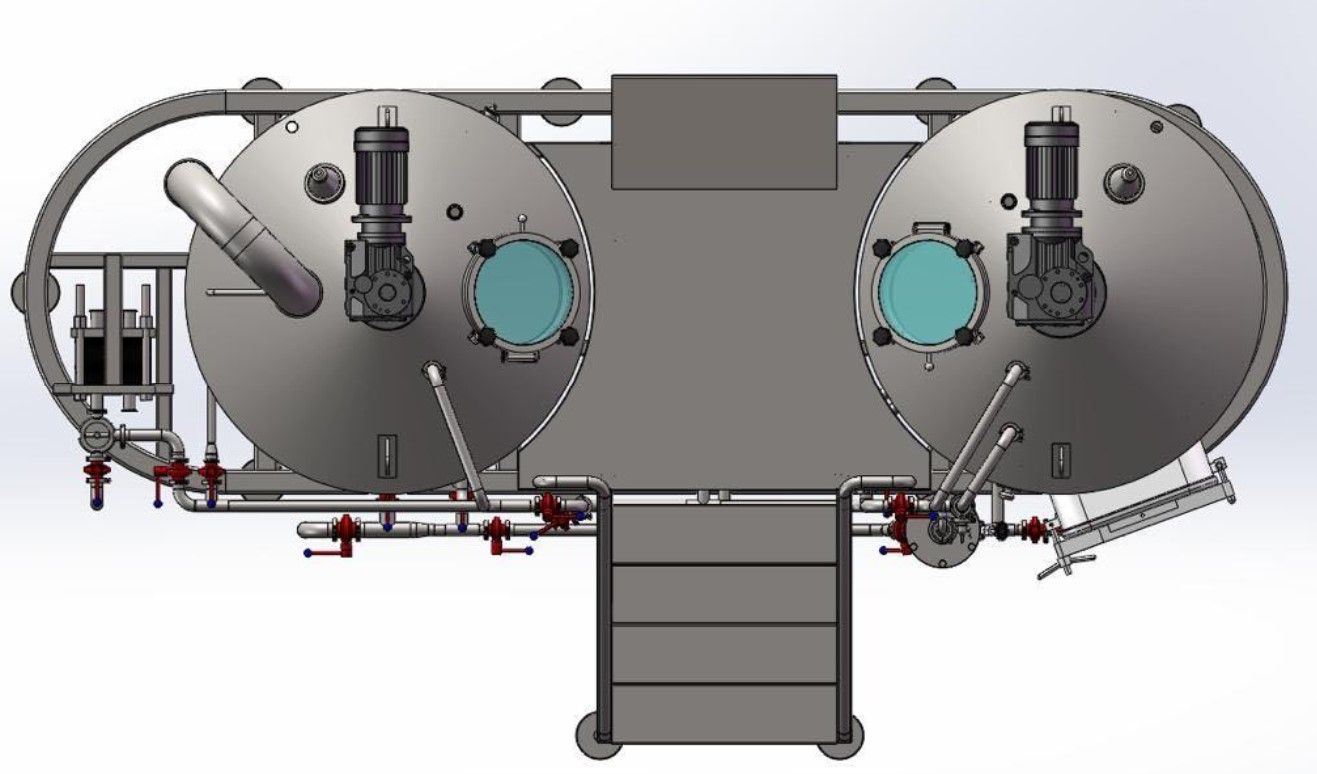

01 Brew blocks

Choose the right size for you from our system brew blocks, consisting of:

- Mash tun / wort kettle (electric)
with temperature and level sensors
Stainless steel manhole, 75 mm insulation,
stainless steel cladding

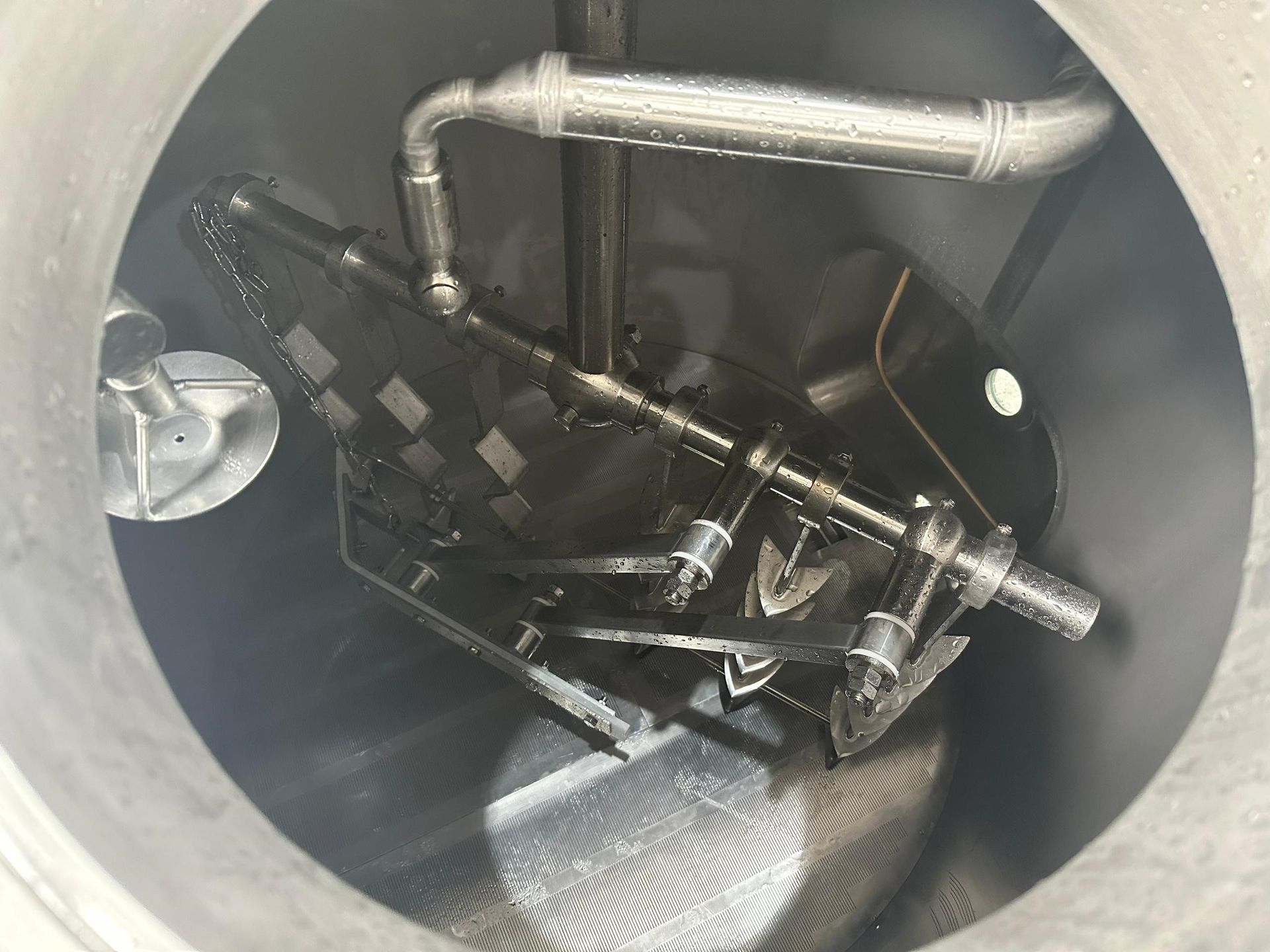

- Lauter tun with chopping mechanism (adjustable),
removable false floor, side
Manhole and purification trough

- Wort/mash pump

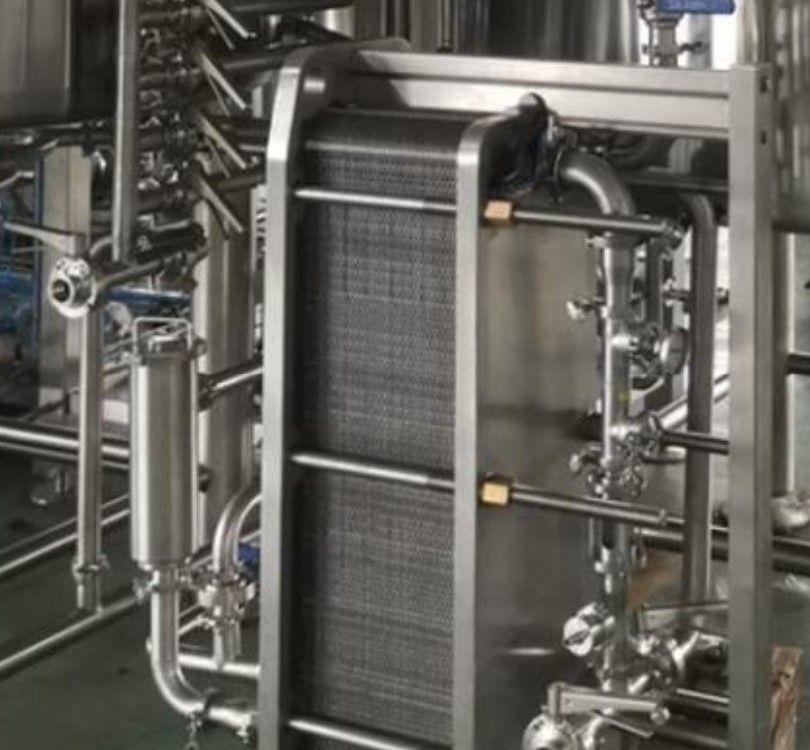

- Plate heat exchanger for wort

with ventilation at 45-60 min cooling time

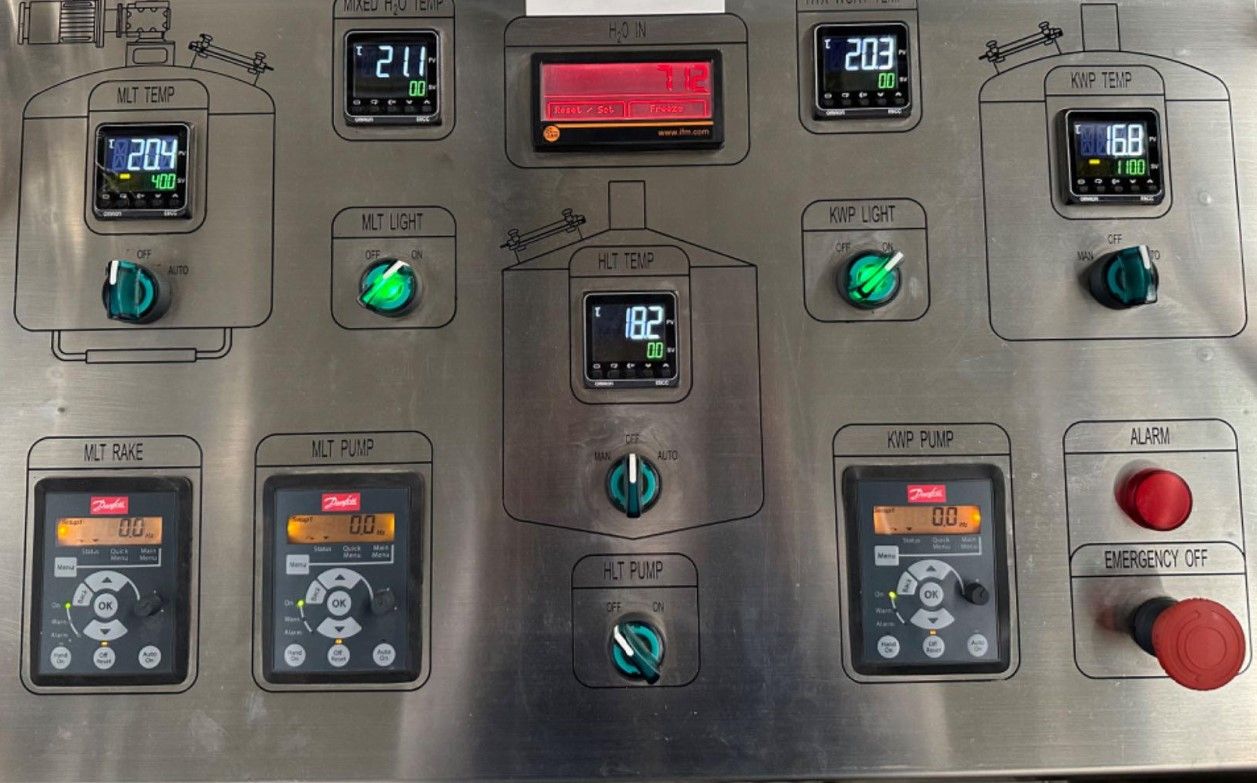

- Control panel with temperature control

All steel parts in 304L/1.4304

3 hl brewery €39,500

5 hl brewery €49,500

10 hl brewery €63,500

20 hl brewhouse €79,900 (steam tank)

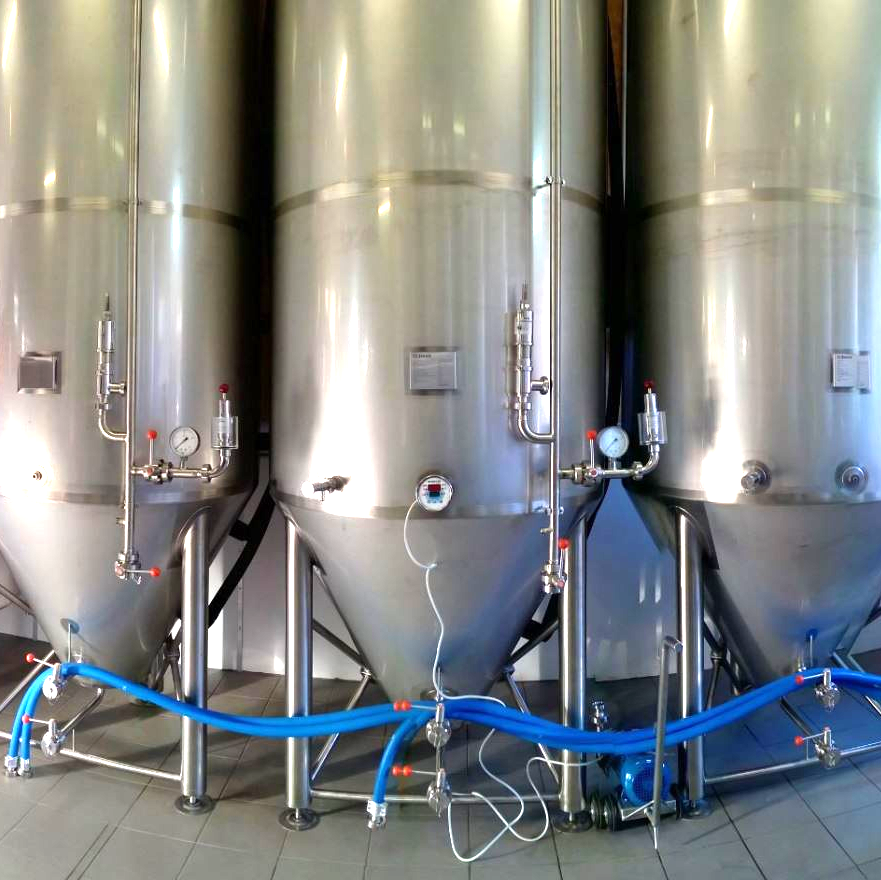

02 Fermentation/storage tanks

Fermentation/storage tanks CCTs are selected according to your planned annual production volume.
All CCTs have 25% rise space, are insulated and stainless steel lined, and have individual cooling zones.

BBTs have 10% rise space and have jacket cooling.

The tank top fittings consist of a pressure and vacuum valve, a bunging and cleaning valve.

Size CCT/Fermenter BBT/Dispensing

5 hl €6,100 €5,900

10 hl €8,000 €7,850

15 hl €9,300 €9,150

20 hl €10,600 €10,450

30 hl €12,000 €11,850

40 hl €14,000 €13,850

Discounts apply for orders of 8 tanks or €50,000 or more

03 Accesories

Zur Kühlung der CCT und Kaltwassertank für die Würzekühlung

Kälteanlage für  6 CCT bei 2 Sude/Woche

10 hl               6.500 €

20 hl               8.900 €

30 hl             10.900 €

40 hl             12.900 €

              Kaltwassertank  Heisswassertank

  5 hl               5.200 €               5.400 €

10 hl               6.700 €               6.900 €

20 hl               9.200 €               9.400 €

               Dampferzeuger (elektrisch)

100 kg/h (für 10 hl Sudblock)  24.800 €

200 kg/h (für 20 hl Sudblock)  34.900 €

Fahrbarbe Pumpe und Schläuche

bis 10 hl         2.500 €

bis 40 hl         3.900 €

Kegwascher 2 Kopf   40 K/h        13.500 €

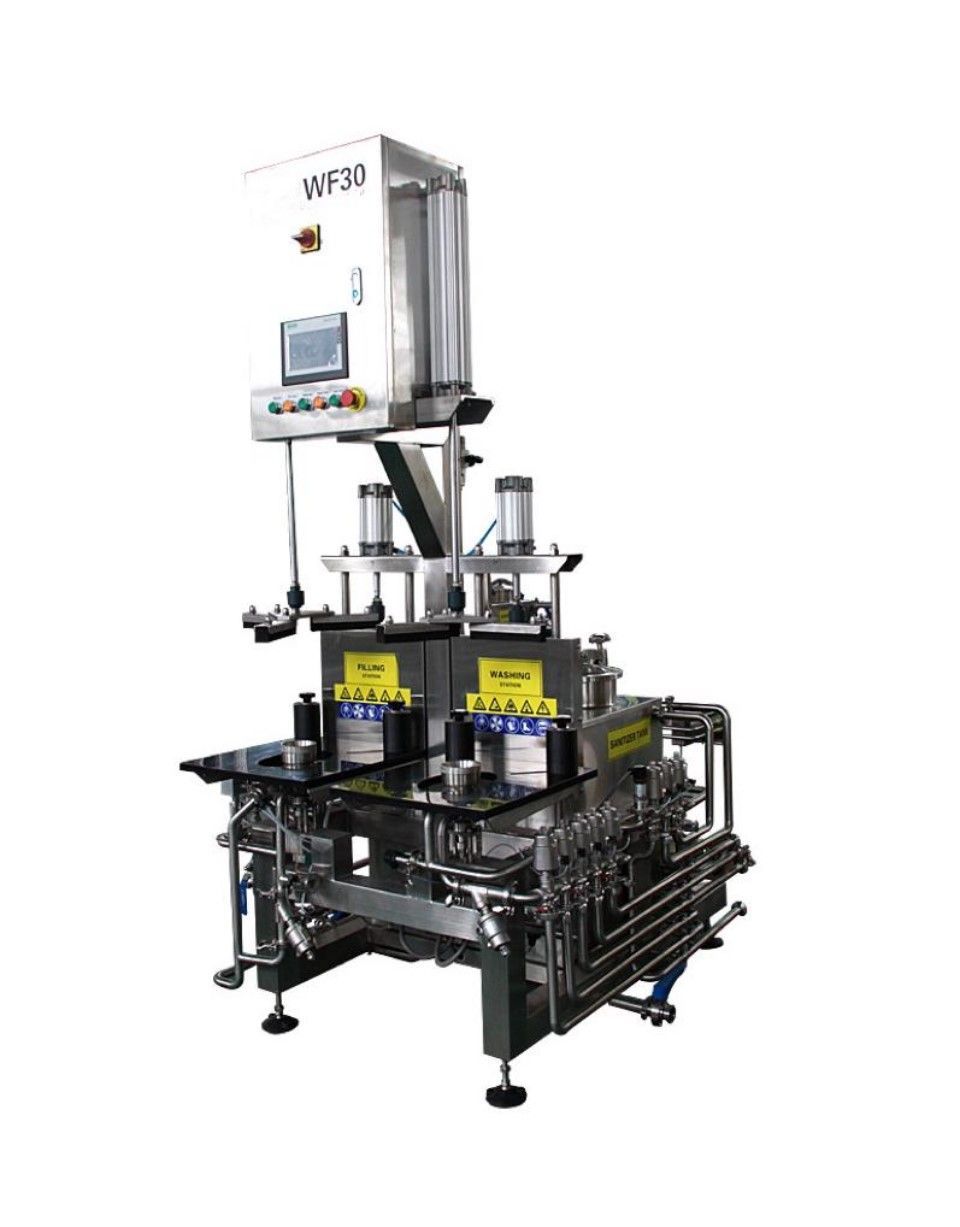

Kegwascher & Füller 30 K/h        23.800 €
