"The brewing has already taken place - now your story begins."
Special offer: 5hl-2 complete brewing system, steam heated
Price: €70,000
Details about the brewery:
Capacity: 5hl
Design: 2-vessel brewhouse, steam-operated, semi-automatic, year of manufacture 2020
Item 1:
Scrap metal shop
- Malt mill on a stand with a large filling funnel

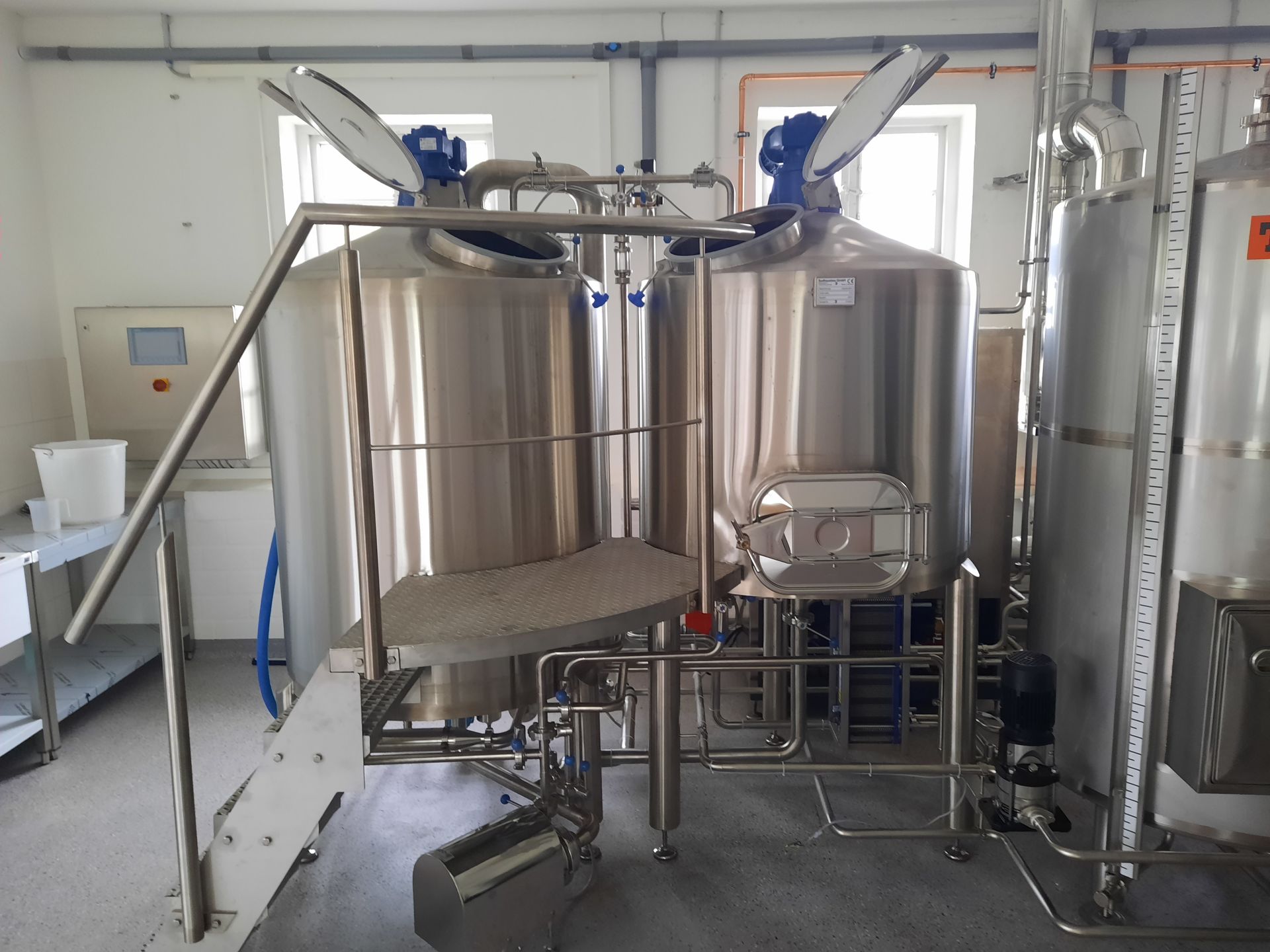

Item 2: Brewhouse
- Mash pan (combination vessel):500 L (5 hl), steam-operated heating jacket, agitator
- Lauter vat:500 L (5 hl) with false bottom, hoeing mechanism, spent grain hatch
- Complete brewer's platform:Operating platform, piping, circulation and transfer pumps, fittings, sight glasses, CIP fittings
- Plate cooler:Stainless steel 1.4404, single-stage
- Water mixing station:Solenoid valve, water mixer, meter
Item 3: steering
- Semi-automatic PLC control (Siemens) with touch panel
- Control of pumps, agitators, temperature profiles
- Recipe entry and recipe selection possible
Item 4: Steam generator
- Gas-heated, with water treatment
- TÜV and CE certified
Item 5: Fermentation cellar

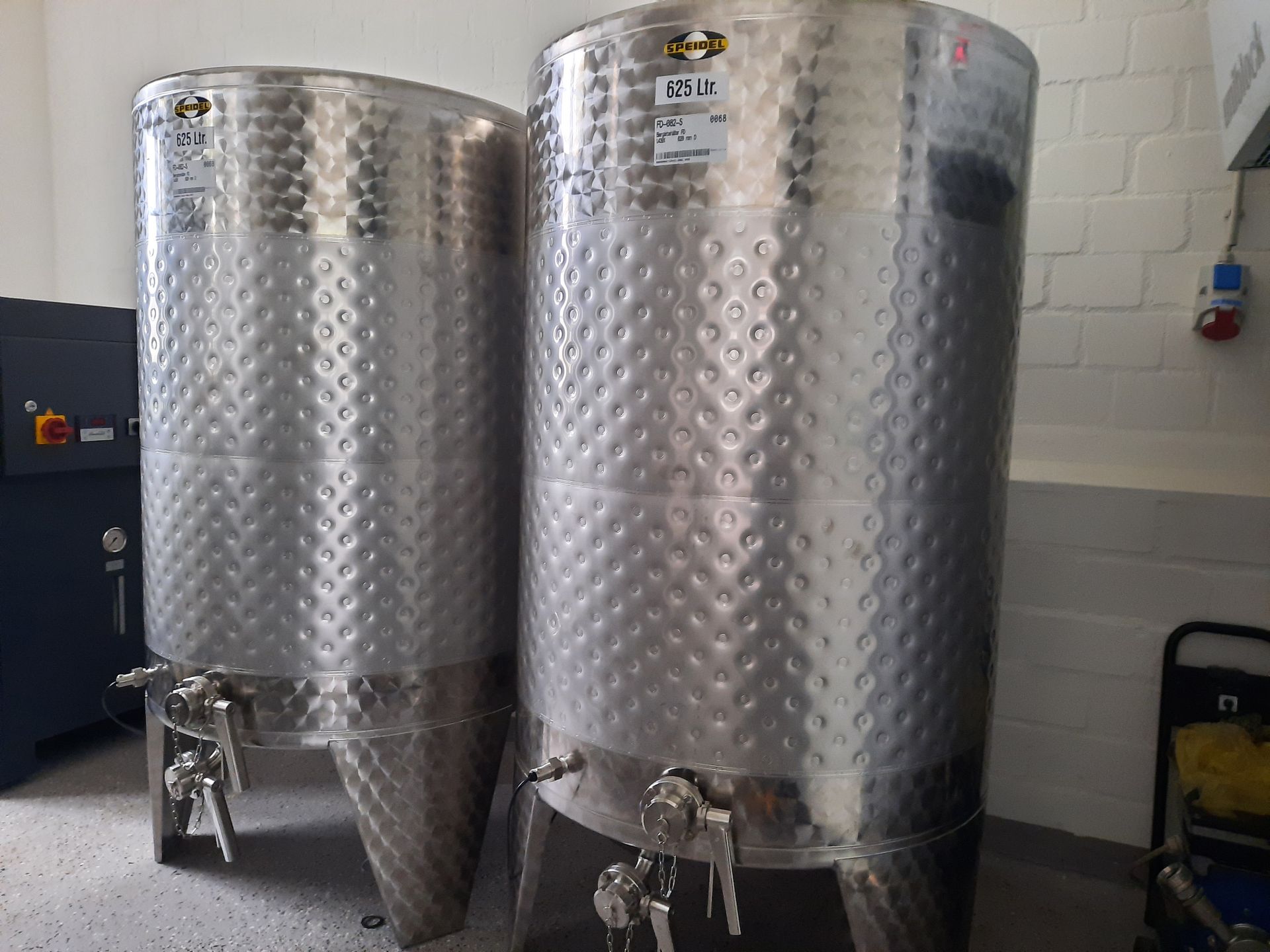

- 2 open fermentation vats 625 L (Speidel) with cooling jacket

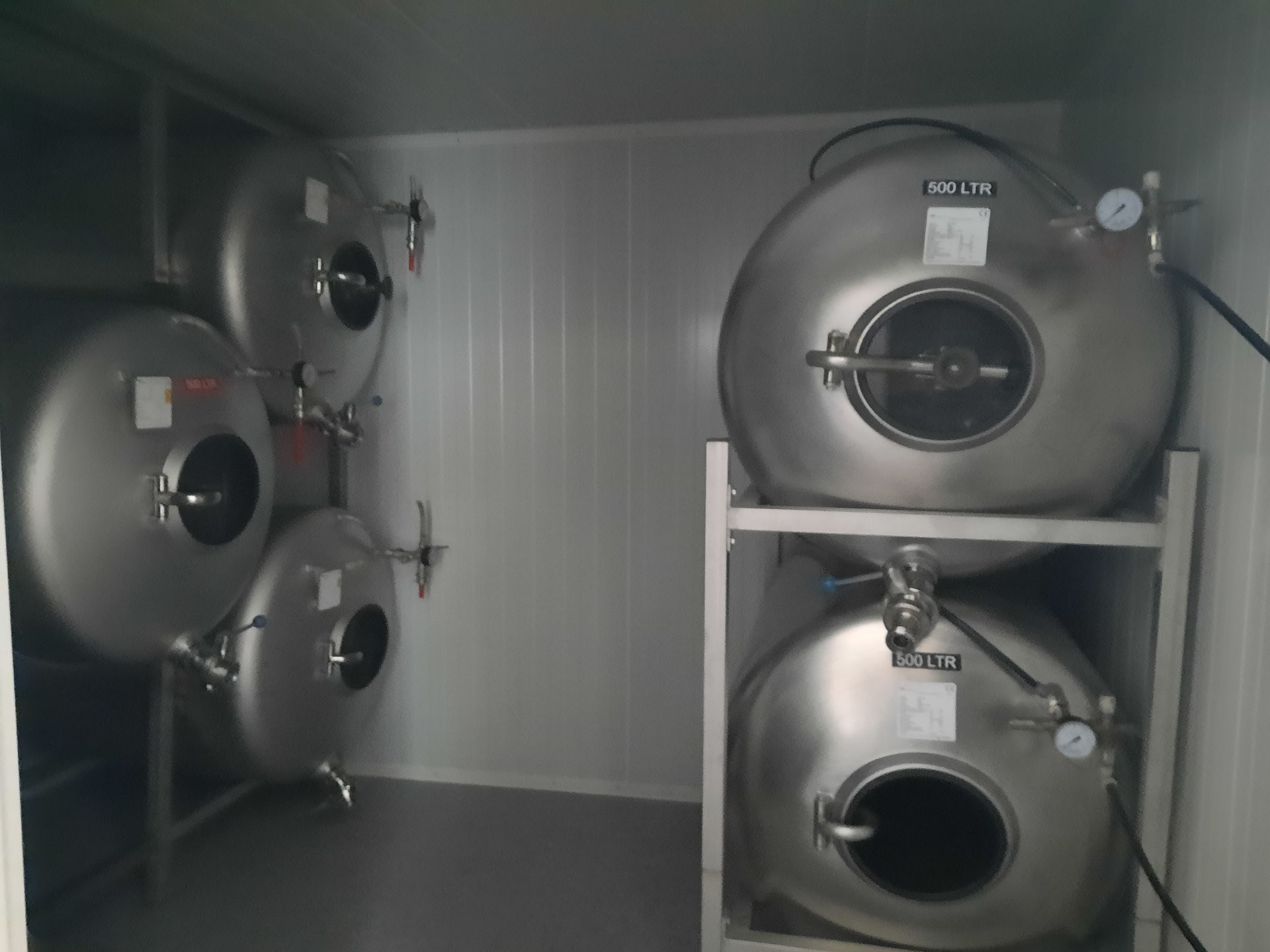

Item 6: Storage cellar
- 5 horizontal storage tanks, 500 L, single-walled, no cooling jacket
Item 7: Water and refrigeration control
- Hot water tank:700 L, unpressurized, insulated with 80 mm mineral wool, stainless steel cladding, screw-in heating element
- Cold water tank:700 L, unpressurized, insulated, cooled by a refrigeration unit
- Water chiller BL 040 / Eco-design:Cooling capacity 1.8 kW, cooling and heating function
- Fermentation temperature controller:3 Cube Plugs
Item 8: Accesories
- Mobile pump
- Beer hoses
- Various other parts
Special offer: 10 hl, 2 units, complete steam-heated brewery
Selling price: €65,000

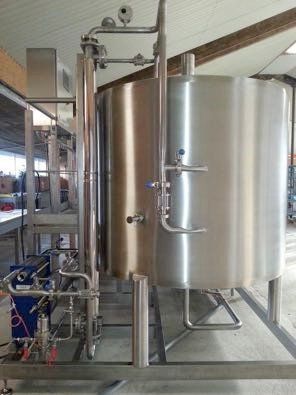

Item 1 Brewhouse (2 steam-heated units)
2-container 1000L brewhouse
The brewhouse is designed for a wort volume of 1000L.
Mash/lauter tank, kettle and whirlpool tank mounted on the mobile frame.
The brewhouse consists of:
Item 1.1 10 hl - Mash/lauter tun
Item 1.210 hl - wort cooker / whirlpool
Pos.1.3 20 hl - hot water tank

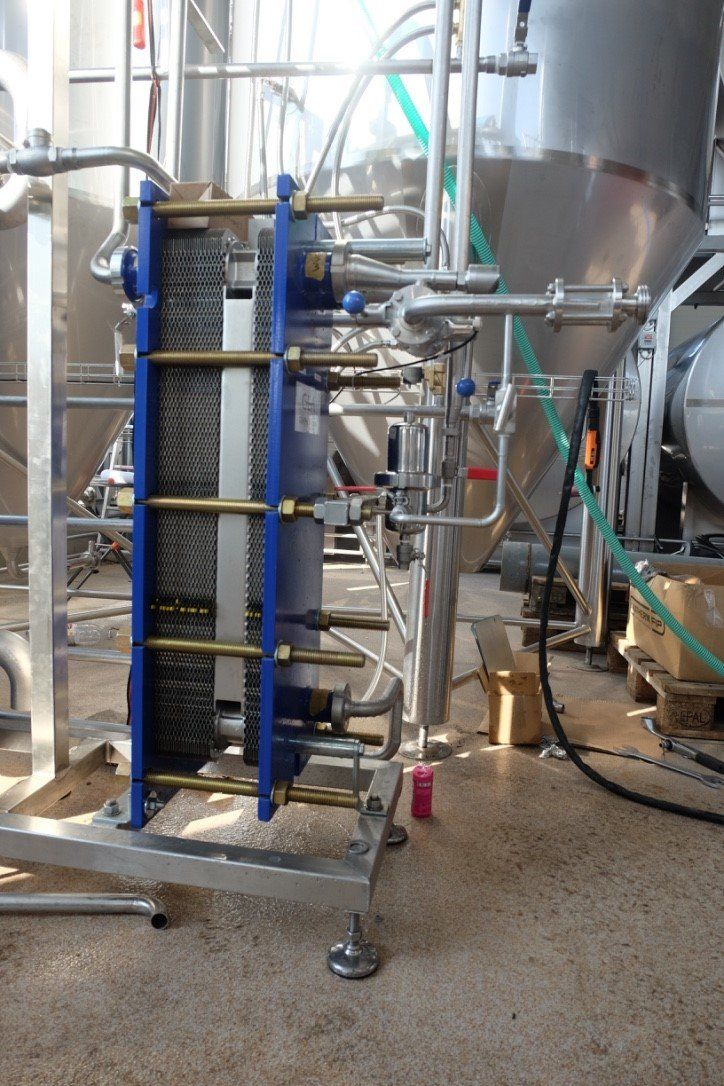

Item 1.4 Plate heat exchanger and wort aeration
Item 1.5 3 centrifugal pumps
E
Item 1.6 Base frame / operator platform

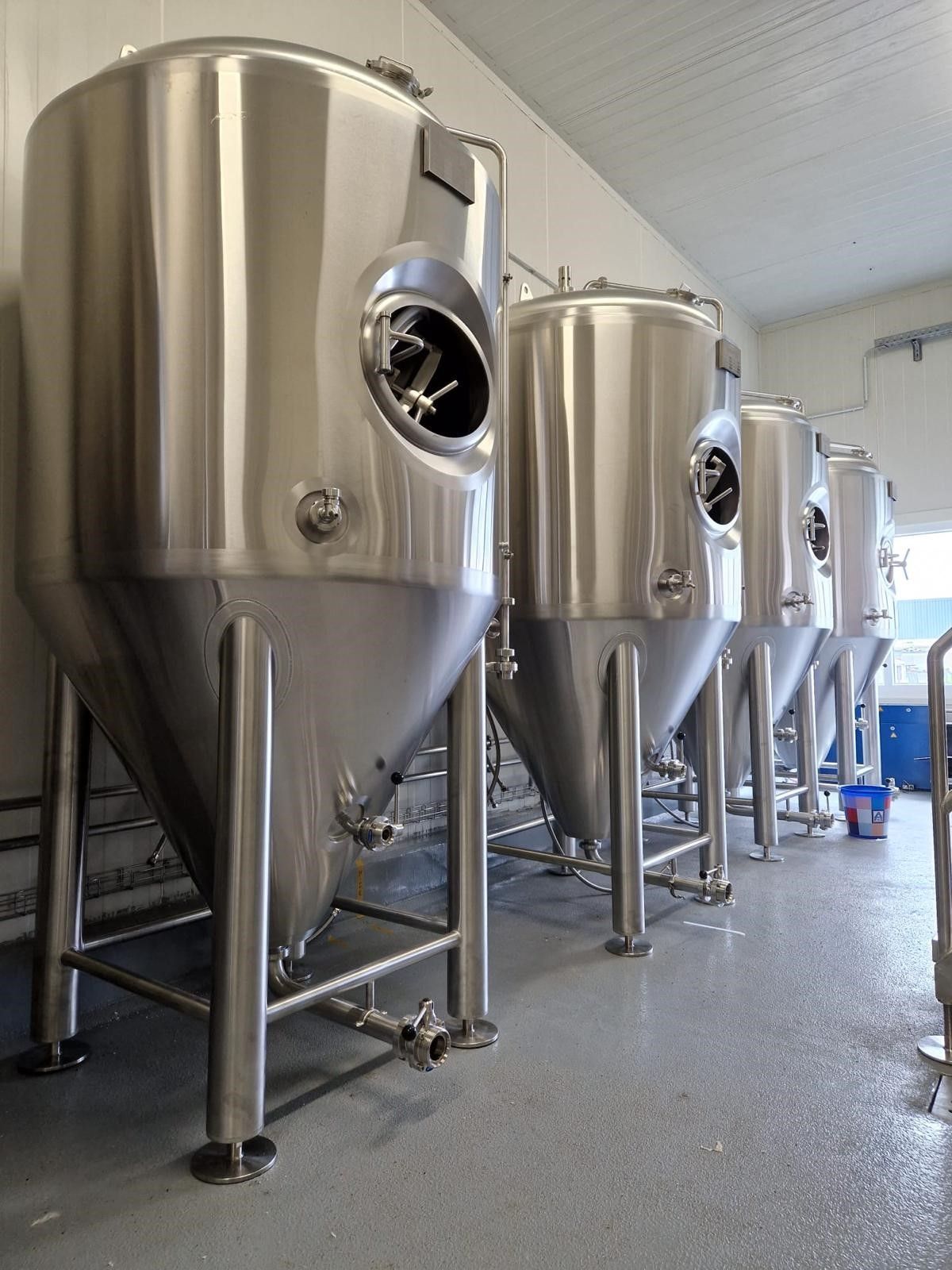

Item 2 Fermentation and storage cellar
- 4 storage tanks, 10 hl each
(standing, with cooling and insulation)
- 2 storage tanks, 20 hl capacity
(standing, with cooling and insulation)
Item 3 Manual control system
The control system contains two control cabinets:
• One for controlling the brewhouse, mounted on the operator's platform
• One unit for the fermentation system is mounted on the wall in the fermentation cellar.
If interested, please contact:
Mobile: 0151-67600272

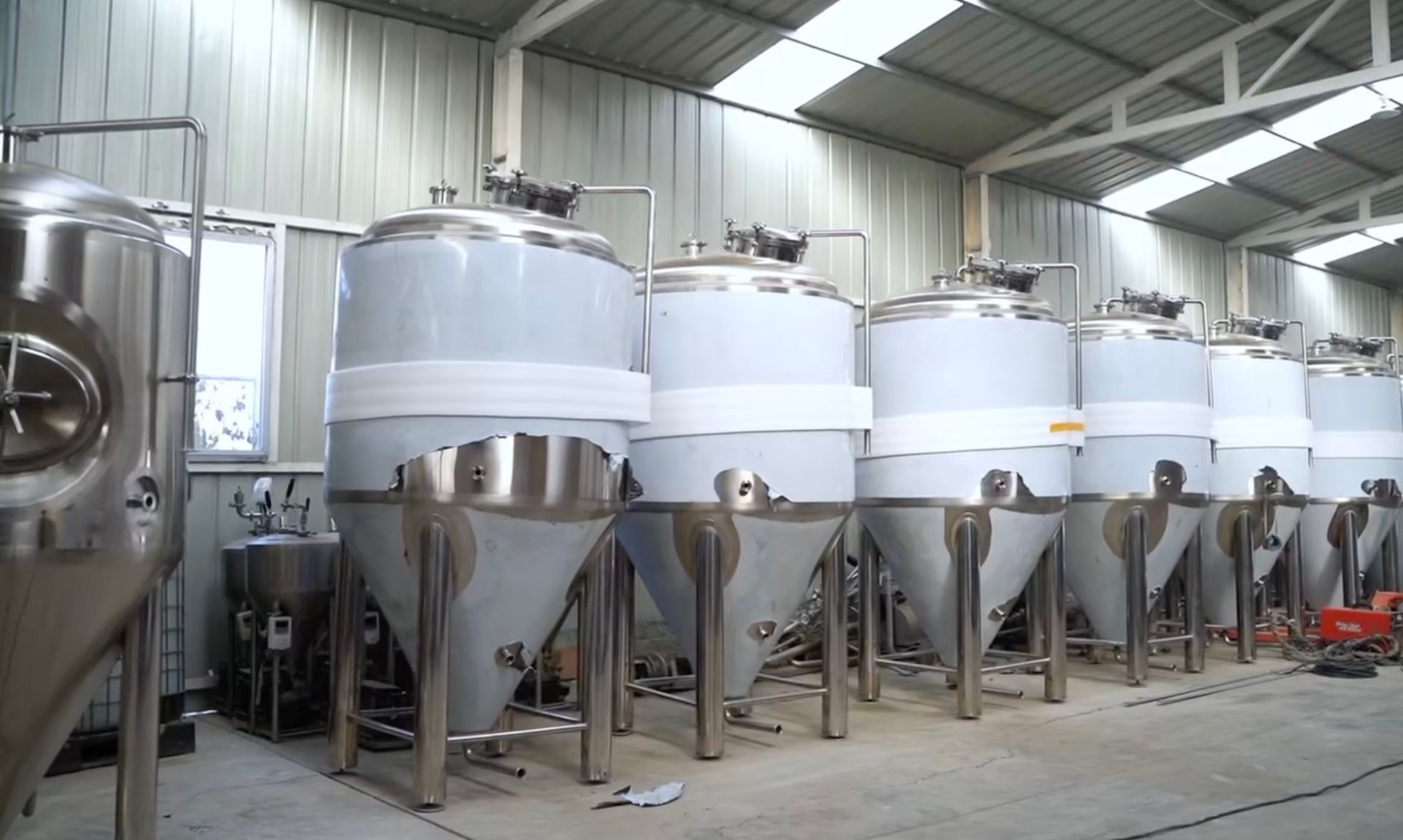

Cancelled customer order - 6x 20hl fermentation tanks
€36,000
Net contents = 20 hl
Gross contents = 25 hl
Inner diameter = 1400 mm
Diameter with insulation = 1250 mm
Maximum height = 3260 mm
Operating conditions:
Operating temperature = -5/ 30 °C
Operating pressure = 2 bar
Surface finish
Top surface = sanded inside
Cylindrical part Cold-rolled material = DIN EN 10028-7 2B
Material = 1.4301 AISI 304
Surfaces = bare metal, pickled
Interior surface = 2B
Cylindrical conical base = 60°
Tank equipment:
Made of stainless steel, cables pulled into the control room
Side manhole = 340 x 440
Rotary head cleaner = 360°
with CIP(CO2) = DN40
Screw connection and disc valve = DN 40
Safety valve = DN 25/50 on CIP line
Vacuum valve = DN 50
Blasting apparatus = DN 25
Manometer D = 100 G ½“
Sampling valve
Temperature sensor connection = G ½“
Beer outlet on conical disc valve; yeast outlet on conical disc valve = DN 32
Cooling zones in the cone and jacket
= DN 32
